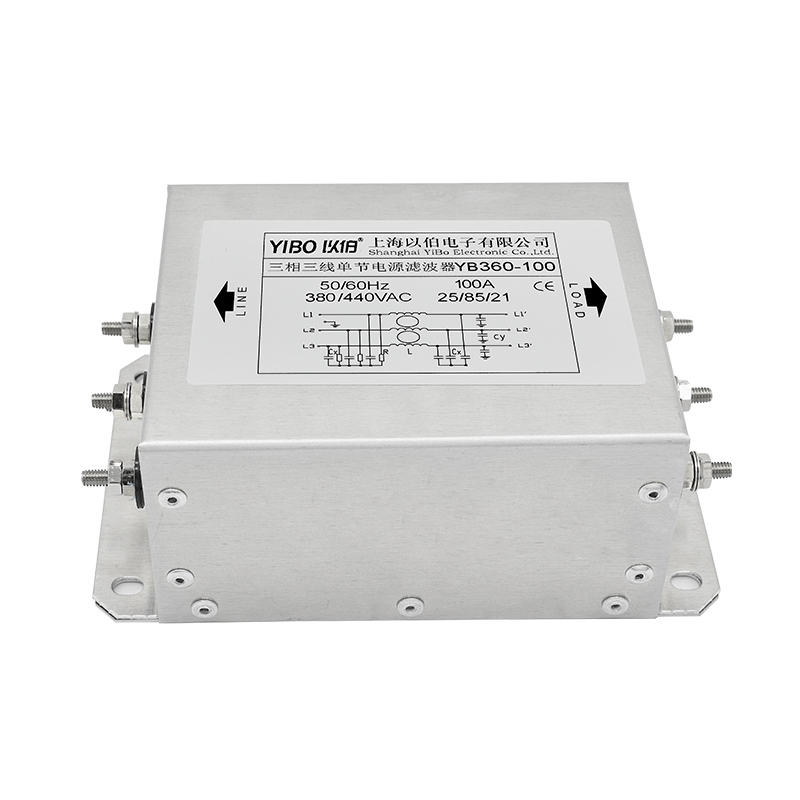

YB360 Series Single-Stage Three-Phase Three-Wire Power Filter
Product Name: Three-Phase Three-Wire EMI Power Filter
Series: YB360
Application: Industrial power systems, inverters, servo drives, communication equipment, automation equipment, and devices requiring electromagnetic interference suppression.
Product Features
Compact size and lightweight structure
Excellent high-frequency and low-frequency filtering performance
Low leakage current design
Effectively suppresses electromagnetic interference between power lines
Suitable for motors, inverters, servo systems, frequency converters, and other electronic equipment with severe interference conditions
Technical Specifications
| Item | Specification |
|---|---|
| Rated Voltage | 380V / 440V AC |
| Operating Frequency | 50 / 60Hz |
| Test Voltage | P–E: 2150VDC, P–P: 2700VDC |
| Operating Temperature | -25℃ to +85℃ |
| Insulation Resistance | ≥200MΩ / 500VDC |
Product Selection Table
| Model | Connection | Rated Current | Case Size | Leakage Current | L mH | Cx uF | Cy nF | R MΩ |
|---|---|---|---|---|---|---|---|---|
| YB360-5 | /M | 5A | C3 | <0.5mA/P | 4.2 | 0.22 | 4.7 | 1.0 |
| YB360-10 | /M | 10A | C3 | <0.5mA/P | 2.1 | 0.22 | 4.7 | 1.0 |
| YB360-16 | /M | 16A | C3 | <0.5mA/P | 0.8 | 0.47 | 10 | 1.0 |
| YB360-20 | /M | 20A | E3 | <0.5mA/P | 1.1 | 0.22 | 4.7 | 1.0 |
| YB360-30 | /M | 30A | E3 | <1.0mA/P | 0.7 | 0.47 | 10 | 1.0 |
| YB360-40 | /M | 40A | G3 | <1.0mA/P | 0.7 | 0.47 | 10 | 1.0 |
| YB360-50 | /M | 50A | G3 | <1.0mA/P | 0.36 | 0.47 | 10 | 1.0 |
| YB360-60 | /M | 60A | N5 | <1.0mA/P | 0.25 | 1.0 | 10 | 0.47 |
| YB360-75 | /M | 75A | N5 | <1.0mA/P | 0.25 | 1.0 | 10 | 0.47 |
| YB360-100 | /M | 100A | N10 | <1.0mA/P | 0.2 | 1.0 | 10 | 0.47 |
Circuit Diagram
Three-phase input: L1 / L2 / L3
Three-phase output: L1’ / L2’ / L3’
Internal components include common-mode inductance, X capacitors, Y capacitors, and discharge resistors.
Typical Applications
Variable frequency drives
Servo drive systems
Industrial motors
CNC machinery
Automation equipment
Communication equipment
Power control cabinets
Industrial electronic equipment
